COVID-19 Spike Protein Ultrasensitive ELISA Kit (UNFI0086)
- SKU:
- UNFI0086
- Product Type:
- ELISA Kit
- Size:
- 96 Assays
- Uniprot:
- P0DTC2
- Sensitivity:
- 390fg/ml
- Range:
- 0.78-50pg/ml
- ELISA Type:
- Sandwich ELISA, Double Antibody
- Synonyms:
- Coronavirus(COVID-19,SARS-CoV-2, 2019-nCoV)
- Reactivity:
- Universal
Description
COVID-19 Spike Protein Ultrasensitive ELISA Kit - Information
The Assay Genie COVID-19 Spike Protein Ultrasensitive ELISA Kit can assay for COVID-19 Spike Protein in the following samples: serum, blood, plasma, cell culture supernatant and other related supernatants and tissues.
How our COVID-19 Spike Protein Ultrasensitive ELISA Kits Work?
The Assay Genie (enzyme-linked immunosorbent assays) assay kits are designed for the quantitative measurement of analytes in a wide variety of samples. As today's scientists demand high quality consistent data for high impact journals, Assay Genie have developed our range of sensitive, fast and reliable ELISA kit assays to meet and exceed those demands. Our assay kits use a quantitative sandwich ELISA technique and each kit comes with highly specific antibodies pre-coated onto a 96-well microtiter plate.
At Assay Genie we understand the need for speed! Therefore, we have developed an ultra-fast protocol meaning you achieve your results rapidly. So, once you have prepared and plated your samples, blanks and standards, you simply incubate with a highly specific biotin-conjugated primary antibody and Avidin conjugated to Horseradish Peroxidase (HRP) and incubate for the appropriate length of time. After washing the plate according to the protocol and addition of the TMB (3,3',5,5'-Tetramethylbenzidine) solution, the appearance of a blue colour should be detected due to an enzymatic reaction catalysed by HRP. Next step is the addition of the Stop Solution which terminates the HRP reaction and the blue colour turns yellow with the signal intensity measured on a plate reader at 450nm. The amount of bound COVID-19 Spike Protein is proportional to the signal generated by the reaction meaning the kit assay gives you a quantitative measurement of the analyte in your samples.
COVID-19 Spike Protein Ultrasensitive ELISA Kit Data
| Product Code | UNFI0086 | |||||||||||||||||||||||||||||||||||||||||||||
| Alias | Coronavirus(COVID-19,SARS-CoV-2, 2019-nCoV) ELISA Kit | |||||||||||||||||||||||||||||||||||||||||||||
| Detection method | Sandwich ELISA, Double Antibody | |||||||||||||||||||||||||||||||||||||||||||||
| Application | This immunoassay kit allows for the in vitro quantitative determination of COVID-19 Spike Protein concentrations in serum plasma and other biological fluids. | |||||||||||||||||||||||||||||||||||||||||||||
| Size | 96T | |||||||||||||||||||||||||||||||||||||||||||||
| Range | 0.78-50pg/ml | |||||||||||||||||||||||||||||||||||||||||||||
| Sensitivity | 390fg/ml | |||||||||||||||||||||||||||||||||||||||||||||
| Storage | 2-8°C for 6 months | |||||||||||||||||||||||||||||||||||||||||||||

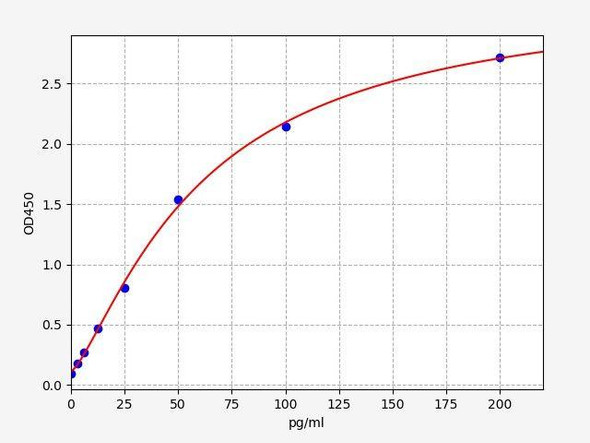

| Typical Data | Results of a typical standard operation of a 2019 nCoV(S) ELISA Kit are listed below. This standard curve was generated at our lab for demonstration purpose only. Users shall obtain standard curve as per experiment by themselves. (N/A=not applicable)
| |||||||||||||||||||||||||||||||||||||||||||||
| Sample test results | 293T cells were cultured in RPMI 1640 supplemented with 10% fetal bovine serum, 2 mM L-glutamine, 100 U/mL penicillin, and 100 μg/mL streptomycin sulfate, Cells were transfected with the 2019 nCoV(S) plasmid, Aliquots of the cell culture supernates were removed and assayed for levels of 2019 nCoV(S).
| |||||||||||||||||||||||||||||||||||||||||||||
| Specificity |
| |||||||||||||||||||||||||||||||||||||||||||||
| Recovery | Matrices listed below were spiked with certain level of 2019 nCoV(S) and the recovery rates were calculated by comparing the measured value to the expected amount of 2019 nCoV(S) in samples.
| |||||||||||||||||||||||||||||||||||||||||||||
| Linearity | The linearity of the kit was assayed by testing samples spiked with appropriate concentration of 2019 nCoV(S) and their serial dilutions. The results were demonstrated by percentage of calculated concentration to the expectation.
| |||||||||||||||||||||||||||||||||||||||||||||
| CV(%) | Intra-Assay: CV<8% | |||||||||||||||||||||||||||||||||||||||||||||
| Note | For Research Use Only |
COVID-19 Spike Protein Ultrasensitive ELISA Kit Protocol
The below protocol is a sample protocol for COVID-19 Spike Protein Ultrasensitive ELISA Kit using a biotinylated detection antibody and streptavidin-HRP. Sandwich ELISA Kits allow for the detection and quantification of an analyte in a sample by using known analyte concentrations as standards and plotting absorbance of known concentrations vs known standard concentrations. This allows the researcher to calculate the amount of COVID-19 Spike Protein Antibody present in their sample.
Before adding to wells, equilibrate the SABC working solution and TMB substrate for at least 30 min at 37°C. When diluting samples and reagents, they must be mixed completely and evenly. It is recommended to plot a standard curve for each test.
Sandwich Protocol
Assay Protocol:
| 1. | Set standard, test sample and control (zero) wells on the pre-coated plate respectively, and then, record their positions. It is recommended to measure each standard and sample in duplicate. Wash plate 2 times before adding standard, sample and control (zero) wells! |
| 2. | Aliquot 0.1ml standard solutions into the standard wells. |
| 3. | Add 0.1 ml of Sample / Standard dilution buffer into the control (zero) well. |
| 4. | Add 0.1 ml of properly diluted sample ( Human serum, plasma, tissue homogenates and other biological fluids.) into test sample wells. |
| 5. | Seal the plate with a cover and incubate at 37 °C for 90 min. |
| 6. | Remove the cover and discard the plate content, clap the plate on the absorbent filter papers or other absorbent material. Do NOT let the wells completely dry at any time. Wash plate X2. |
| 7. | Add 0.1 ml of Biotin- detection antibody working solution into the above wells (standard, test sample & zero wells). Add the solution at the bottom of each well without touching the side wall. |
| 8. | Seal the plate with a cover and incubate at 37°C for 60 min. |
| 9. | Remove the cover, and wash plate 3 times with Wash buffer. Let wash buffer rest in wells for 1 min between each wash. |
| 10. | Add 0.1 ml of SABC working solution into each well, cover the plate and incubate at 37°C for 30 min. |
| 11. | Remove the cover and wash plate 5 times with Wash buffer, and each time let the wash buffer stay in the wells for 1-2 min. |
| 12. | Add 90 µl of TMB substrate into each well, cover the plate and incubate at 37°C in dark within 10-20 min. (Note: This incubation time is for reference use only, the optimal time should be determined by end user.) And the shades of blue can be seen in the first 3-4 wells (with most concentrated standard solutions), the other wells show no obvious color. |
| 13. | Add 50 µl of Stop solution into each well and mix thoroughly. The color changes into yellow immediately. |
| 14. | Read the O.D. absorbance at 450 nm in a microplate reader immediately after adding the stop solution. |
COVID-19 Spike Protein Ultrasensitive ELISA Kit components | 96 Assays | Storage |
| ELISA Microplate (Dismountable) | 8×12 strips | 4°C for 6 months |
| Lyophilized Standard | 2 | 4°C/-20°C |
| Sample/Standard Dilution Buffer | 10ml | 4°C |
| Biotin-labeled Antibody(Concentrated) | 120ul | 4°C (Protect from light) |
| Assay Dilution | 5ml | 4°C |
| Antibody Dilution Buffer | 10ml | 4°C |
| HRP-Streptavidin Conjugate(SABC) | 120ul | 4°C (Protect from light) |
| SABC Dilution Buffer | 10ml | 4°C |
| TMB Substrate A | 5ml | 4°C (Protect from light) |
| TMB Substrate B | 5ml | 4°C (Protect from light) |
| Stop Solution | 10ml | 4°C |
| Wash Buffer(25X) | 30ml | 4°C |
| Plate Sealer | 5 | - |
Other materials and equipment required:
The Assay Genie COVID-19 Spike Protein Ultrasensitive ELISA Kit will require other equipment and materials to carry out the assay. Please see list below for further details.
- Microplate reader with 450 nm wavelength filter
- 37°C incubator
- Automated plate washer
- Precision single and multi-channel pipette and disposable tips
- Clean tubes and Eppendorf tubes
- Buffer resevoir
- Deionized or distilled water
Sample Preparation
ELISAアッセイを実施する場合、可能な限り最良の結果を達成するためにサンプルを準備することが重要です。以下に、さまざまなサンプルタイプのサンプルを準備するための手順のリストを示します。
| Sample Type | Protocol |
Serum | If using serum separator tubes, allow samples to clot for 30 minutes at room temperature. Centrifuge for 10 minutes at 1,000x g. Collect the serum fraction and assay promptly or aliquot and store the samples at -80°C. Avoid multiple freeze-thaw cycles. If serum separator tubes are not being used, allow samples to clot overnight at 2-8°C. Centrifuge for 10 minutes at 1,000x g. Remove serum and assay promptly or aliquot and store the samples at -80°C. Avoid multiple freeze-thaw cycles. |
Plasma | Collect plasma using EDTA or heparin as an anticoagulant. Centrifuge samples at 4°C for 15 mins at 1000 × g within 30 mins of collection. Collect the plasma fraction and assay promptly or aliquot and store the samples at -80°C. Avoid multiple freeze-thaw cycles. Note: Over haemolysed samples are not suitable for use with this kit. |
Urine & Cerebrospinal Fluid | Collect the urine (mid-stream) in a sterile container, centrifuge for 20 mins at 2000-3000 rpm. Remove supernatant and assay immediately. If any precipitation is detected, repeat the centrifugation step. A similar protocol can be used for cerebrospinal fluid. |
Cell culture supernatant | Collect the cell culture media by pipette, followed by centrifugation at 4°C for 20 mins at 1500 rpm. Collect the clear supernatant and assay immediately. |
Cell lysates | Solubilize cells in lysis buffer and allow to sit on ice for 30 minutes. Centrifuge tubes at 14,000 x g for 5 minutes to remove insoluble material. Aliquot the supernatant into a new tube and discard the remaining whole cell extract. Quantify total protein concentration using a total protein assay. Assay immediately or aliquot and store at ≤ -20 °C. |
Tissue homogenates | The preparation of tissue homogenates will vary depending upon tissue type. Rinse tissue with 1X PBS to remove excess blood & homogenize in 20ml of 1X PBS (including protease inhibitors) and store overnight at ≤ -20°C. Two freeze-thaw cycles are required to break the cell membranes. To further disrupt the cell membranes you can sonicate the samples. Centrifuge homogenates for 5 mins at 5000xg. Remove the supernatant and assay immediately or aliquot and store at -20°C or -80°C. |
Tissue lysates | Rinse tissue with PBS, cut into 1-2 mm pieces, and homogenize with a tissue homogenizer in PBS. Add an equal volume of RIPA buffer containing protease inhibitors and lyse tissues at room temperature for 30 minutes with gentle agitation. Centrifuge to remove debris. Quantify total protein concentration using a total protein assay. Assay immediately or aliquot and store at ≤ -20 °C. |
Breast Milk | Collect milk samples and centrifuge at 10,000 x g for 60 min at 4°C. Aliquot the supernatant and assay. For long term use, store samples at -80°C. Minimize freeze/thaw cycles. |
